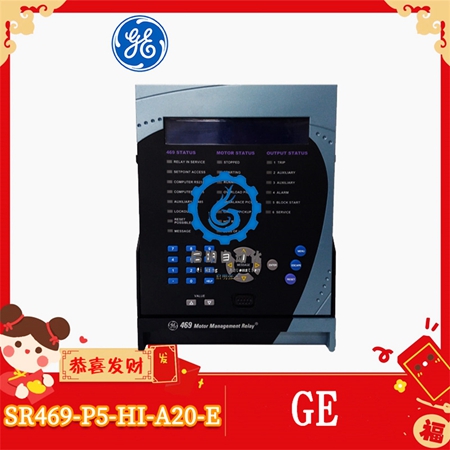

General Electric 469-P5-HI-A20-T

The General Electric (GE) 469-P5-HI-A20-T Motor Management Relay is a specialized device designed for industrial automation control systems. Below is a detailed overview of its features and capabilities:

Key Features

1. High-Performance Specifications:

   • It has a 90-ampere phase CT secondary and high-rated control power (300-70 VDC, 265-48 VAC @ 62-4 Hz).
   • The specific unit features a 20-40 mA analog output.

2. Standard Front Panel:

   • Equipped with an LCD screen, LED indicators, a numeric keypad, and other input keys.
   • Incorporates an optional 10BaseT Ethernet port for connection to a 10 Mbps Ethernet network.
   • Features one RS232 port on the front panel for quick programming and troubleshooting.
   • Additionally, there are two RS485 ports on the rear panel.
   • These serial ports support the ModBus RTU protocol, and with the addition of the Ethernet port, the SR469 also supports ModBus RTU over TCP/IP.

3. Motor Protection and Control:

   • Provides voltage and frequency protection.
   • Prevents grounding faults, load loss detection, reverse active power, current imbalance, and over-torque to safeguard the load from mechanical damage.
   • Offers robust motor control functions, including starting, stopping, and reversing the motor, suitable for various motor-driven applications.

4. Ease of Programming and Configuration:

   • Offers a user-friendly programming interface and configuration tools.
   • Users can program the module according to their actual needs, achieving complex control logic and data processing functions.

5. High Reliability and Durability:

   • Manufactured with high-quality electronic components and materials.
   • Subjected to rigorous quality control and testing to ensure long-term stable operation.

6. Ease of Maintenance and Debugging:

   • Designed with simplicity for easy cleaning and maintenance.
   • Provides rich debugging tools and functions to facilitate module debugging and troubleshooting.

Applications

The GE 469-P5-HI-A20-T Motor Management Relay is suitable for various industrial applications requiring high reliability and stability in motor control, such as aviation, manufacturing, and machinery.

Pricing and Availability

Pricing for the GE 469-P5-HI-A20-T Motor Management Relay may vary depending on the vendor, purchase quantity, and any ongoing promotions. It is recommended to contact the supplier directly for the most accurate pricing information.

In summary, the GE 469-P5-HI-A20-T Motor Management Relay is a versatile and reliable device that offers comprehensive motor protection and control functions. Its high-performance specifications, ease of programming and configuration, and robust design make it an ideal choice for industrial automation control systems.
